Mortise hotel card lock — panel 82 × 296 mm, mortise case 26 × 203 × 90 mm, backset 62 mm. Dimension drawing below; finishes and OEM/ODM options on request.

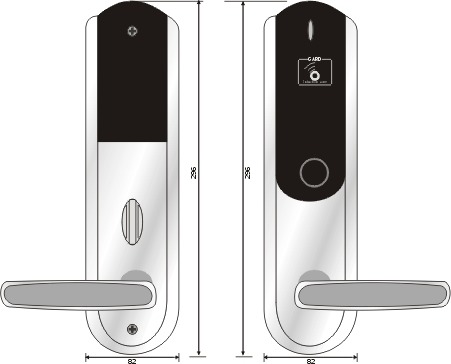

YT-830Y product photo
Front panel
Handle detail
Technology Specification
| Model | YT-830Y |
|---|---|
| Panel Width | 82 mm |
| Panel Height | 296 mm |
| Mortise Case Thickness | 26 mm |
| Mortise Case Height | 203 mm |
| Mortise Body Depth | 90 mm |
| Backset | 62 mm |

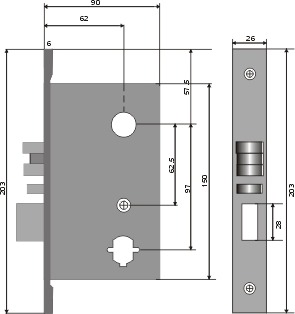

Dimension Drawing
Engineering dimension drawing of YT-830Y. Each drawing is shown on its own line so it stays readable on a phone screen.
Product Specification
Mortise hotel card lock — panel 82 × 296 mm, mortise case 26 × 203 × 90 mm, backset 62 mm. Dimension drawing below; finishes and OEM/ODM options on request.
Overview
Mortise hotel card lock — panel 82 × 296 mm, mortise case 26 × 203 × 90 mm, backset 62 mm. See the dimension drawing below. Finishes and OEM/ODM options on request.
Downloads
Datasheets and technical documents are free to download. Unlock downloads with your email and a password — no reseller agreement required.
- YT-830Y datasheet (1493 KB) Download
